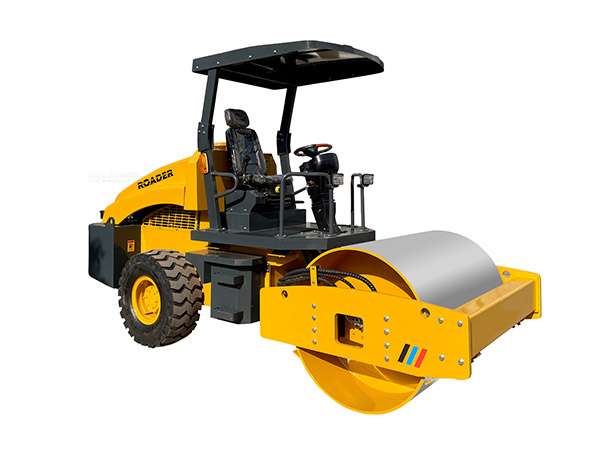

RD2060/RD2080/RD2100 Full Hydraulic Single Drum Vibratory Roller

Single drum vibratory roller, is applicable for maintenance of municipal roads and high ways, as well as the compaction of the building construction, stadium and other industrial sites. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.

Main technical parameters

Model RD2060 RD2080 RD2100
Operating mass kg 5800 7800 9800
Centrifugal force kN 85 120 150
Vibration frequency Hz 50 50 50
Drum width/diameter mm 1450/1060 1600/1200 1660/1200
Static linear load(front) N/cm 165 225 245
Travel speed km/h
Forward Gear 0-8.2 0-9.2 0-9.5
Backward Gear 0-8.2 0-9.2 0-9.5
Grade ability % 30 30 30
Min. turning radius mm 5100 5510 5510
Wheel bass mm 2285 2580 2580
Engine model YN4H055 YN4BL095 YN4BL095
Engine power kw 36.8 70 70
Battery voltage V 12 12 12
Dimensions(LxWxH) mm 4235*1595*2570 4795*1765*2645 4795*1830*2645
